Boring Bars for Grooving

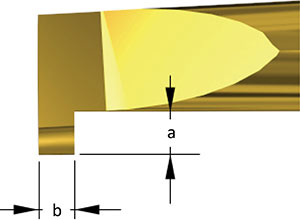

Style G
Boring bars for Straight Grooves

Straight Groove through cut

Boring bars for straight grooves
                STOCK PRICE
GROUP
Boring bar D d b a f L I 10M C10 F10 B10
C31NR G0,2 3 0,8 0,2 0,3 0,4 24 4 b k b b B4
C32NR G0,3 3 1,6 0,3 0,5 0,8 24 7 b k b b B4
C33NR G0,5 3 2,2 0,5 0,7 1,1 24 10 b k b b B4
C34NR G0,2 3 3 0,2 0,3 1,5 24 12 b k b b B3
C34NR G0,5 3 3 0,5 0,8 1,5 24 12 b k b b B3
C34NR G0,8 3 3 0,8 1 1,5 24 12 b k b b B3
C34NR G1,0 3 3 1 1 1,5 24 12 b k b b B3
C4NR G0,5 4 4 0,5 0,8 2 32 16,5 b k b k B4
C4NR G1,0 4 4 1 1,3 2 32 16,5 b k b k B4
C5NR G0,5 5 5 0,5 0,8 2,5 40 21 b k b k B5
C5NR G1,0 5 5 1 1,5 2,5 40 21 b k b k B5
C5NR G1,5 5 5 1,5 1,5 2,5 40 21 b k b k B5
C6NR G0,7 6 6 0,7 1,3 3 48 26 b k b k B7
C6NR G1,0 6 6 1 1,3 3 48 26 b k b k B7
C6NR G1,5 6 6 1,5 2 3 48 26 b k b k B7
C6NR G2,0 6 6 2 2 3 48 26 b k b k B7
C8NR G1,0 8 8 1 1,7 4 72 45 b k b k B11
C8NR G1,5 8 8 1,5 2,2 4 72 45 b k b k B11
C8NR G2,0 8 8 2 2,7 4 72 45 b k b k B11
C8NR G2,5 8 8 2,5 2,7 4 72 45 b k b k B11

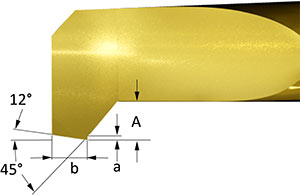

Style P
Boring bars for Grooving and
Chamfering before Parting Off

grooving and chamfering before parting off cut through

Boring bar for grooving and chamfering before parting off
                  STOCK PRICE
GROUP
Boring bar D d b A a f L I 10M C10 F10 B10
C3NR P0,8 3 3 0,8 0,8 0,1 1,5 24 12 b k b b B4
C4NR P1,0 4 4 1 1 0,1 2 32 16,5 b k b k B5
C5NR P1,0 5 5 1 1,3 0,2 2,5 40 21 b k b k B6
C6NR P1,0 6 6 1 1,5 0,2 3 48 26 b k b k B8
C8NR P1,5 8 8 1,5 2 0,3 4 72 45 b k b k B12






WhizIn Internal Turning

Boring Bars
Boring bar for Turning Boring bar for back turning
Boring bar for grooving Boring bar for Threading
Turning
Boring bar for Turning
Back Turning
Boring bar for back turning
Grooving
Boring bar for grooving
Threading
Boring bar for Threading
Face Grooving
Boring bar face grooving insert
Tool Holders
Internal Tool Holder
