WhizIn Tool Holders for Internal Turning in Swiss

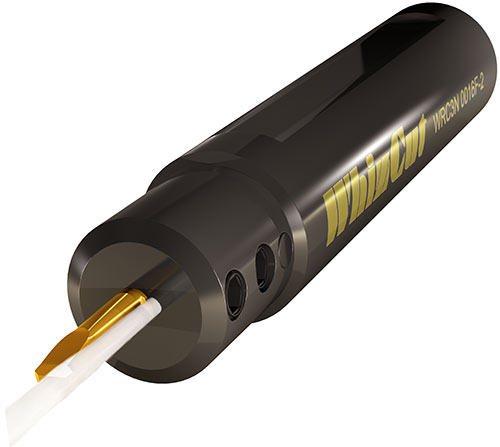

The WhizIn Tool holder

As the boring bar is mounted in a 2° angle in the toolholder, a natural incline angle is achieved which is perfect for high pressure coolant.

  • Coolant through
  • Double screws for security and stability
  • Special tool holder designs for Swiss type automatic lathes
  • The toolholder and boring bar has a self locating system. When clamping within 30° the boring bar rotates itself into a correct position.
WhizIn internal turning tool holder with through coolant

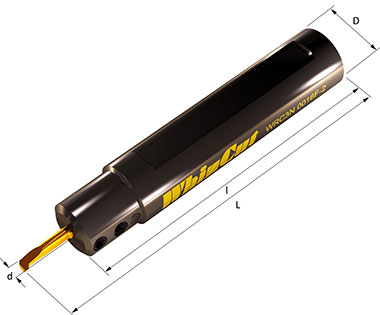

WRC
Round Tool Holder with Internal Coolant



Go to inserts for:
Turning, Straight copy turning, Threading, Straight grooving, Grooving and chamfering before parting off, Back turning, Face grooving

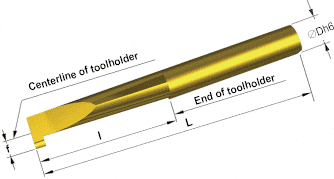

Tool holder for internal turning with cylindrical shank
Toolholder D d Insert
Size
l L with
standard insert
Boring
Bar
Stock Price
group
WRC3N 0012E-2 12 3 70 82 C3N--- r B20
WRC4N 0012E-2 12 4 70 86,5 C4N--- r B20
WRC3N 0016F-2 16 3 80 92 C3N--- r B21
WRC4N 0016F-2 16 4 80 96,5 C4N--- r B21
WRC5N 0016F-2 16 5 80 101 C5N--- r B21
WRC6N 0016F-2 16 6 80 106 C6N--- r B21
WRC3N 0750H-2 3/4” 3 100 112 C3N--- r B22
WRC4N 0750H-2 3/4” 4 100 116,5 C4N--- r B22
WRC5N 0750H-2 3/4” 5 100 121 C5N--- r B22
WRC6N 0750H-2 3/4” 6 100 126 C6N--- r B22
WRC8N 0750H-2 3/4” 8 100 145 C8N--- r B22
WRC3N 0020H-2 20 3 100 112 C3N--- r B22
WRC4N 0020H-2 20 4 100 116,5 C4N--- r B22
WRC5N 0020H-2 20 5 100 121 C5N--- r B22
WRC6N 0020H-2 20 6 100 126 C6N--- r B22
WRC8N 0020H-2 20 8 100 145 C8N--- r B22
WRC3N 0022J-2 22 3 110 122 C3N--- r B23
WRC4N 0022J-2 22 4 110 126,5 C4N--- r B23
WRC5N 0022J-2 22 5 110 131 C5N--- r B23
WRC6N 0022J-2 22 6 110 136 C6N--- r B23
WRC8N 0022J-2 22 8 110 155 C8N--- r B23
WRC3N 0025J-2 25 3 110 122 C3N--- r B24
WRC4N 0025J-2 25 4 110 126,5 C4N--- r B24
WRC5N 0025J-2 25 5 110 131 C5N--- r B24
WRC6N 0025J-2 25 6 110 136 C6N--- r B24
WRC8N 0025J-2 25 8 110 155 C8N--- r B24
WRC3N 1000J-2 1” 3 110 122 C3N--- r B24
WRC4N 1000J-2 1” 4 110 126,5 C4N--- r B24
WRC5N 1000J-2 1” 5 110 131 C5N--- r B24
WRC6N 1000J-2 1” 6 110 136 C6N--- r B24
WRC8N 1000J-2 1” 8 110 155 C8N--- r B24

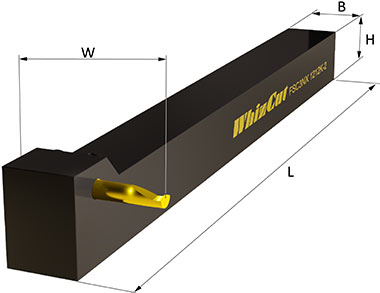

FSC
Square Shank with Centerline at Top



Go to inserts for:
Turning, Straight copy turning, Threading, Straight grooving, Grooving and chamfering before parting off, Back turning, Face grooving

Tool holder for internal turning with square shank
Toolholder B H L W Boring Bar Stock Price group
FSC3NX 1208K-2 12 8 125 24 C3N--- k B20
FSC3NX 1210K-2 12 10 125 24 C3N--- k B21
FSC3NX 1212K-2 12 12 125 24 C3N--- k B22
FSC3NX 1616K-2 16 16 125 24 C3N--- k B23
FSC4NX 1908K-2 19 8 125 38 C4N--- k B20
FSC4NX 1910K-2 19 10 125 38 C4N--- k B21
FSC4NX 1912K-2 19 12 125 38 C4N--- k B22
FSC4NX 1916K-2 19 16 125 38 C4N--- k B23
FSC5NX 2412K-2 24 12 125 50 C5N--- k B22
FSC5NX 2416K-2 24 16 125 50 C5N--- k B22
FSC5NX 2420K-2 24 20 125 50 C5N--- k B23

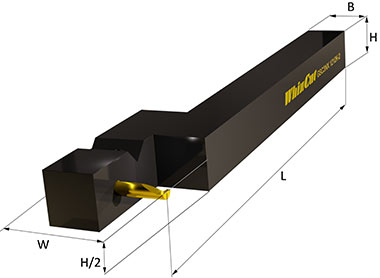

GSC
Square Shank with Centerline at Center



Go to inserts for:
Turning, Straight copy turning, Threading, Straight grooving, Grooving and chamfering before parting off, Back turning, Face grooving



Tool holder for internal turning with square shank
Toolholder B H L W Boring Bar Stock Price group
GSC3NX 1208K-2 12 8 125 24 C3N--- k B25
GSC3NX 1210K-2 12 10 125 24 C3N--- k B26
GSC3NX 1212K-2 12 12 125 24 C3N--- r B27
GSC3NX 1616K-2 16 16 125 24 C3N--- k B28
GSC4NX 1908K-2 19 8 125 38 C4N--- k B25
GSC4NX 1910K-2 19 10 125 38 C4N--- k B26
GSC4NX 1912K-2 19 12 125 38 C4N--- k B27
GSC4NX 1916K-2 19 16 125 38 C4N--- k B28
GSC5NX 2412K-2 24 12 125 50 C5N--- k B27
GSC5NX 2416K-2 24 16 125 50 C5N--- k B28

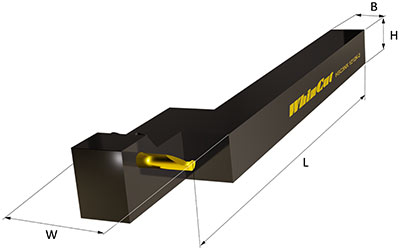

HSC
Square Shank with Centerline at Top



Go to inserts for:
Turning, Straight copy turning, Threading, Straight grooving, Grooving and chamfering before parting off, Back turning, Face grooving



Tool holder for internal turning with square shank
Toolholder B H L W Boring Bar Stock Price group
HSC3NX 1208K-2 12 8 125 24 C3N--- k B27
HSC3NX 1210K-2 12 10 125 24 C3N--- k B28
HSC3NX 1212K-2 12 12 125 24 C3N--- k B29
HSC3NX 1616K-2 16 16 125 24 C3N--- k B30
HSC4NX 1908K-2 19 8 125 38 C4N--- k B28
HSC4NX 1910K-2 19 10 125 38 C4N--- k B29
HSC4NX 1912K-2 19 12 125 38 C4N--- k B30
HSC4NX 1916K-2 19 16 125 38 C4N--- k B31
HSC5NX 2412K-2 24 12 125 50 C5N--- k B31
HSC5NX 2416K-2 24 16 125 50 C5N--- k B32





Stock status:

a ER Stock standard, EL Stock standard
b ER Stock standard, EL against inquiry
c EL Stock standard, ER against inquiry
r ER Stock standard only
l EL Stock standard only
k ER against inquiry, EL against inquiry
