WhizHip – high pressure connections

WhizHip is a high-pressure coolant connection system that’s quick, adjustable, and easy to use. As part of WhizCut’s CNC machine accessories, it ensures maximum coolant flow from machine to holder, allowing for fast and effortless connections.

Benefits of the WhizHip cooling system

  • Flexible: WhizHip is designed with flexible, hard wearing stainless steel braided hoses – bendable with quick change couplings and adjustable nozzles.
  • Heat resistant: The hoses are designed to withstand heat from hot chips shooting from the workpiece.
  • Time saving: Connect the hoses to the quick change coupling without using any other tools.
  • Precise: The high pressure coolant is led through the toolholder and exits with directed jets.
  • Great chip control: High pressure controls and breaks the chip thanks to its concentration at the cutting edge.
  • Ready: Several WhizHip and WhizIn tool holders are prepared for internal high pressure coolant.

WhizGuide

Various set up options

WhizGuide WhizHip
1
1. Premium thread clamped quick change hose
2
2. Adjustable steel nozzle
3
3. Inlet connection feed line
4
4. Choice of different connection types
5
5. Flexible copper nozzle
6
6. Coupling
7
7. Regular crimped quick change hose
8
8. Wide range of adapters
  1. Premium thread clamped quick change hose
  2. Adjustable steel nozzle
  3. Inlet connection feed line
  4. Choice of different connection types
  5. Flexible copper nozzle
  6. Coupling
  7. Regular crimped quick change hose
  8. Wide range of adapters

Product tables

WhizHip — High pressure coolant system

Hoses
WhizHip Premium hose flextube angled connection that includes a banjo bolt
Hoses
Couplings
Couplings
Adapters
WhizHip high pressure coolant adaptors
Adapters
Nipples
WhizHip Banjo plugs and accessories
Accessories
Manifolds
WhizHip manifold 5-way block
Manifolds
Inlet feedlines
WhizHip Inlet connection feed line
Inlet feedlines
Nozzles
WhizHip Octo nozzles external coolant 101993
Nozzles

Hoses

Filter products:

HoseSystemConnector 1Connector 2Length mmThread adapterWrenchPicture
WH103375OCTO PremiumM8x1 ETWO Nipple100M10x1, G1/8SW 11+13A
WH102686OCTO PremiumM8x1 ETWO Nipple200M10x1, G1/8SW 11+13A
WH101991OCTO PremiumM8x1 ETWO Nipple300M10x1, G1/8SW 11+13A
WH102223OCTO PremiumM8x1 ETWO Nipple100-280M10x1, G1/8SW 11+13A
WH102039OCTO PremiumM8x1 ETWO Nipple320-1000M10x1, G1/8SW 11+13A
WH103375UOCTO PremiumM8x1 ETWO Nipple100M10x1, 1/8" NPTSW 11+13A
WH102686UOCTO PremiumM8x1 ETWO Nipple200M10x1, 1/8" NPTSW 11+13A
WH101991UOCTO PremiumM8x1 ETWO Nipple300M10x1, 1/8" NPTSW 11+13A
WH103449OCTO PremiumAngled M8x1 ETWO Nipple100M8x1, M10x1, G1/8SW 13+14B
WH103448OCTO PremiumAngled M8x1 ETWO Nipple200M8x1, M10x1, G1/8SW 13+14B
WH101992OCTO PremiumAngled M8x1 ETWO Nipple300M8x1, M10x1, G1/8SW 13+14B
WH102247OCTO PremiumAngled M8x1 ETWO Nipple100-280M8x1, M10x1, G1/8SW 13+14B
WH102043OCTO PremiumAngled M8x1 ETWO Nipple320-1000M8x1, M10x1, G1/8SW 13+14B
WH103451OCTO PremiumAngled M8x1 ETWO Nipple100M8x1, 1/8” NPTSW 13+14B
WH103450OCTO PremiumAngled M8x1 ETWO Nipple200M8x1, 1/8” NPTSW 13+14B
WH102182OCTO PremiumAngled M8x1 ETWO Nipple300M8x1, 1/8” NPTSW 13+14B
WH102607OCTO PremiumAngled M8x1 ETWO Nipple100-280M8x1, 1/8” NPTSW 13+14B
WH102608OCTO PremiumAngled M8x1WO Nipple320-1000M8x1, 1/8” NPTSW 13+14B
WH103431OCTO PremiumWO NippleWO Nipple100-280--A
WH103432OCTO PremiumWO NippleWO Nipple320-1000--A
WH102586OCTO PremiumWO NippleWO Nipple150--A
WH103376OCTO Premium1/8" NPT ETWO Nipple100-SW 11+13A
WH102938OCTO Premium1/8" NPT ETWO Nipple200-SW 11+13A
WH102186OCTO Premium1/8" NPT ETWO Nipple300-SW 11+13A
WH104184OCTOM8x1 ETWO Nipple300-SW 11C
WH104239OCTOM8x1 ETWO Nipple400-SW 11C
WH104240OCTOM8x1 ETWO Nipple500-SW 11C
WH104241OCTOM8x1 ETWO Nipple100-1000-SW 11C
WH104186OCTOM8x1 ETM8x1 ET300-SW 11C
WH104242OCTOM8x1 ETM8x1 ET400-SW 11C
WH104243OCTOM8x1 ETM8x1 ET500-SW 11C
WH104244OCTOM8x1 ETM8x1 ET100-1000-SW 11C
WH104421OCTOWO NippleWO Nipple100-1000-SW 11C
WH104273MINIM5 ETWM Nipple100-SW 7D
WH104281MINIM5 ETWM Nipple200-SW 7D
WH104204MINIM5 ETWM Nipple300-SW 7D
WH104215MINIM5 ETWM Nipple400-SW 7D
WH104216MINIM5 ETWM Nipple500-SW 7D
WH104217MINIM5 ETWM Nipple100-1000-SW 7D
WH104282MINIM5 ETM5 ET100-SW 7D
WH104284MINIM5 ETM5 ET200-SW 7D
WH104205MINIM5 ETM5 ET300-SW 7D
WH104218MINIM5 ETM5 ET400-SW 7D
WH104219MINIM5 ETM5 ET500-SW 7D
WH104213MINIM5 ETM5 ET100-1000-SW 7D
WH104214MINIWM NippleWM Nipple100-1000--D
WH104065MINIAngled M5 ETWM Nipple300M6, G1/8SW 7+8+10D
WH104190MINIAngled M5 ETWM Nipple400M6, G1/8SW 7+8+10D
WH104191MINIAngled M5 ETWM Nipple500M6, G1/8SW 7+8+10D
WH104192MINIAngled M5 ETWM Nipple100-1000M6, G1/8SW 7+8+10D

WO – WhizHip Octo
WM – WhizHip Mini
ET – External thread
IT – Internal thread

Premium hose flextube - straight connection

Octo Premium (A)

Premium hose flextube - angled connection, includes banjo bolt.

Octo Premium angled (B)

WhizHip Octo hose 104184 M8x1plug

Octo (C)

Mini hoses

Mini hose (D)

Couplings

Octo coupling set quick release
Octo coupling set A

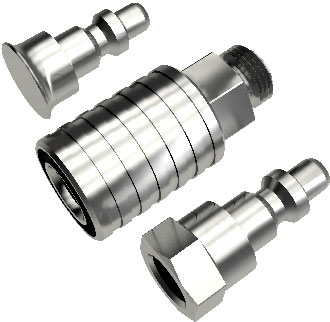

(A) Coupling straight

Octo coupling set B

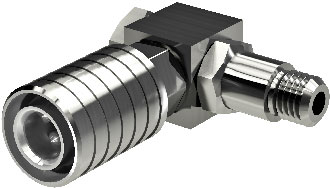

(B) Angled coupling

Octo coupling set C

(C) Coupling internal

Octo coupling set D

(D) Coupling + nipple

Octo coupling set E

(E) Coupling

Filter products:

CouplingSystemStraight/AngledThreadPlugPicture
WH101994OCTO PremiumStraightG1/8●A
WH101995OCTO PremiumStraightM10x1●A
WH102184OCTO PremiumStraight1/8" NPT●A

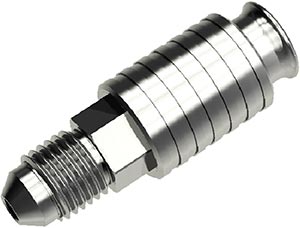

WH103428OCTO PremiumStraightAN/JIC4●E
WH102498OCTO PremiumAngledM8x1●B
WH102654OCTO PremiumAngledG1/8●B
WH103560OCTO PremiumAngled1/8" NPT●B
WH102038OCTO PremiumStraightM8x1 + 102042●D
WH103729OCTO PremiumStraightM8x1 IT●C
WH103947MINIStraightM5●E
WH104067MINIAngledM5●E+F
WH104234OCTOStraightM8x1-A
WH104183OCTOStraightG1/8-A
WH104235OCTOStraightM10x1-A
WH104236OCTOStraight1/8" NPT-A
WH104237OCTOStraightAN/JIC4-E
WH104234 + See adapters/banjo boltsOCTOAngledM8x1-B
WH104234 + See adapters/banjo boltsOCTOAngledG1/8-B
WH104234 + See adapters/banjo boltsOCTOAngled1/8" NPT-B
WH104234 + See nipplesOCTOStraightM8x1 + 102042-D
WH104238OCTOStraightM8x1 IT-C
WH104203MINIStraightM5-E

WO – WhizHip Octo
WM – WhizHip Mini
ET – External thread
IT – Internal thread

Adapters

Filter adapters:

Part numberConnector 1Connector 2WrenchDescriptionPicture
WH101918WO Nipple Anti-turnG1/8 ITSW 11Nipple/Thread adapterD
WH101979M10x1 ETM8x1 ITSW 11Thread adapterA
WH101980G1/8 ETM8x1 ITSW 11Thread adapterA
WH102042WO NippleM8x1 ITSW 11Nipple/Thread adapterB
WH1021881/8" NPT ETM8x1 ITSW 11Thread adapterA
WH102292G1/4 ETG1/8 ITSW 17Thread adapterA
WH102434M6 ETM8x1 ITSW 11Thread adapterA
WH102435M5 ETM8x1 ITSW 11Thread adapterA
WH102453M6 ETM5 ITSW 8Thread adapterA
WH102454M8x1 ETM5 ITSW 8Thread adapterA
WH102585M8x1 ETM8x1 Ø9,5 ITSW 11Thread adapterA
WH102601WO NippleM5 ITSW 11Nipple/Thread adapterB
WH102602WO Nipple1/4" NPT ITSW 11Nipple/Thread adapterB
WH102683WO NippleM8x1 ETSW 11Nipple/Thread adapterB
WH102685WO Nipple1/8" NPT ITSW 11Nipple/Thread adapterB
WH102848G1/8 ETM5 ITSW 8Thread adapterA
WH102864M8 ETM8x1 ITSW 11Thread adapterA
WH102913WO Nipple7/16" UNF ITSW 11Nipple/Thread adapterB
WH1029147/16"-20 UNF ETG1/8 ITSW 11Thread adapterA
WH102915M12 ETM8x1 ITSW 14Thread adapterA
WH102928Collet ER16G1/8 IT-Thread adapterC
WH102931G1/2 ETG1/4 Brass ITSW 24Thread adapterA
WH102932G1/2 ETM16x1,5 Brass ITSW 27Thread adapterA
WH1029401/16" NPT ETM5 ITSW 8Thread adapterA
WH103500M12 ETM8x1 ITSW 14Thread adapterA
WH104189WM NippleM5 ITSW 10Nipple/Thread adapterB
WH2021881/8" NPT ETM5 ITSW 11Thread adapterA

WO – WhizHip Octo
WM – WhizHip Mini
ET – External thread
IT – Internal thread

WhizHip thread adapter

(A) Thread adapter

WhizHip nipple thread adapter

(B) Nipple/Thread adapter

WhizHip thread adapter collet

(C) Thread adapter

WhizHip nipple thread adapter anti-turn

(D) Nipple/Thread adapter

Banjo plugs and accessories

Filter products:

Part numberSystemDescriptionPicture
WH102475OCTOAngled fitting for Banjo bolt. M8x1 IT/10,5ØA
WH101978OCTOBanjo bolt Ø10,5 M8x1 ETB
WH103767OCTOBanjo bolt Ø10,5 5/16"-24 UNJF ETB
WH101919OCTOPlug, WO NippleC
WH103952MINISeal plug, WM NippleC
WH102855MINIAngled fitting for Banjo bolt. M5 IT/6ØA
WH102856MINIBanjo bolt Ø6 M5 ETB
WH102751OCTOCompression ring Ø4 for 102529 & 102625D

WO – WhizHip Octo
WM – WhizHip Mini
ET – External thread
IT – Internal thread

WhizHip Angled fitting for Banjo bolt

(A) Angled fitting

WhizHip Banjo bolt

(B) Banjo bolt

WhizHip plug

(C) Plug

WhizHip compression ring

(D) Compression ring

Manifolds

Octo manifolds and inlets
Manifold Type A, 5-way, Steel Burnished

(A) Manifold 5-way

Manifold Type A for STAR SR-20 RIV, 4-way, Steel Burnished

(B) Manifold 4-way

Octo manifolds and inlets

(C) Manifold 5-way

Manifold Type B, 8-way, Steel Burnished

(D) Manifold 8-way

Manifold Type Round, 3-way

(E) Manifold 3-way

Filter products:

ManifoldTypeOutletInlet to coolant systemConnection/fasteningPicture
WH101990Block5x G1/8 ITG1/4 IT2xScrews M5A
WH102221Block5x 1/8" NPT IT1/4" NPT IT2xScrews M5A
WH102533Block4x G1/8 ITG1/8 IT1xScrew M5B
WH103529Block5x G1/8 ITØ8Incoming hoseC
WH103530Block5x 1/8" NPT ITØ8Incoming hoseC
WH101997Block8x G1/8 ITG3/8 IT2xScrews M5D
WH102220Block8x 1/8" NPT IT3/8" NPT IT2xScrews M5D
WH102440Cylindrical3x CouplingsØ8Incoming hoseE

WO – WhizHip Octo
WM – WhizHip Mini
ET – External thread
IT – Internal thread

Inlet connection feed lines

Part numberProduct nameAdditional info
WH101961Connection feed line, flex-tube, 300 mmND 5, tube stainless steel, outside end G1/4“, pipe end
WH102166Connection feed line, flex-tube, up tp 1000 mmND 5, tube stainless steel, outside thread G1/4“, pipe end
WH102190NPT Connection feed line, flex-tube, 300 mmND 5, tube stainless steel, outside thread 1/4“NPT, pipe end
WH102609NPT Connection feed line, flex-tube, up to 1000 mmND 5, tube stainless steel, outside thread 1/4“NPT, pipe end
Inlet connection feed line

Nozzles

NozzlesSystemDescriptionLength mmAdditional info
WH101993OCTOAngled plug, flexible nozzle150Copper nozzle
WH102529OCTOAngled plug, flexible and adjustable nozzle200Adjustable tip, Stainless
WH102625OCTOStraight plug, flexible and adjustable nozzle200Adjustable tip, Stainless
Octo nozzles external coolant 101993

Copper nozzle (101993)

Octo nozzles external coolant 102529

Adjustable tip (102529)

Octo nozzles external coolant 102625

Adjustable tip, straight (102625)
