Manifolds for High Pressure Coolant Distribution



Manifold Type A, 5-way, Steel Burnished

Part No Art Name Outlets Additional Information
101990 G 1/8 outlet G 1/4 Inlet 5 Includes 2 seal plugs
102221 1/8" NPT outlet 1/4" NPT inlet 5 includes 2 seal plugs

Manifold 5-way

Manifold 5-way block

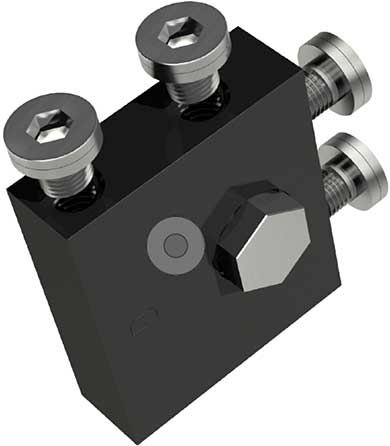

Manifold Type A for STAR SR-20 RIV, 5-way, Steel Burnished

Part No Art Name Outlets Additional Information
102533 G 1/8 outlet G 1/4 Inlet for STAR SR-20 RIV 4 Center hole for fastening.
Includes 2 seal plugs.

Manifold 5-way

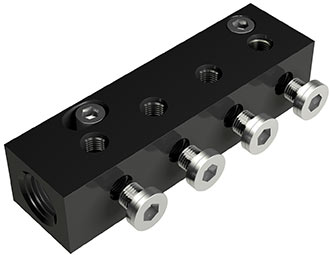

Manifold Type B, 8-way, Steel Burnished

Part No Art Name Additional Information
101997 G 1/8 outlet G 1/4 Inlet Includes 4 seal plugs
102220 1/8" NPT outlet 1/4" NPT inlet Includes 4 seal plugs

Manifold 8-way steel burnished block

Manifold 8-way block

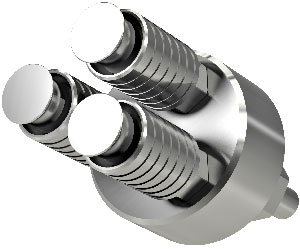

Manifold Type Round, 3-way

Part No Art Name Additional Information
102440 G1/4 and Ø8mm Including adaptor, connection fitting, 3 couplings and 3 seal plugs





Round manifold 3 way with quick connections
