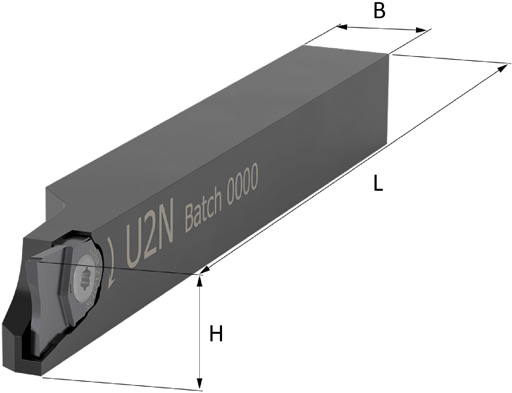

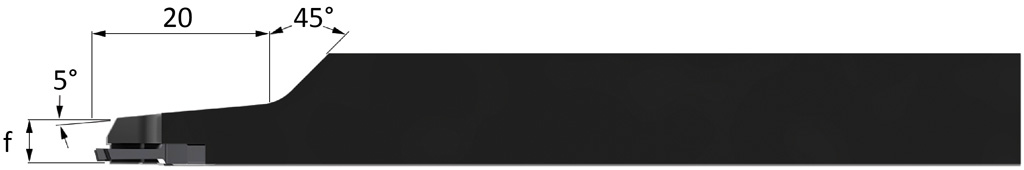

Style B|Right hand - narrow front



TOOLHOLDER H B L f INSERT SCREW KEY STOCK PRICE
PSU2NR 88K-0B 8 8 125 5 U2N M4x5-RU T9IP R A63
PSU2NR 1010K-0B 10 10 125 5 U2N M4x5-RU T9ip R A63
PSU2NR 1212K-0B 12 12 125 5 U2N M4x5-RU T9IP R A63
PSU2NR 0500K-0B 1/2'' 1/2'' 125 5 U2N M4x5-RU T9ip R A63
PSU2NR 1616K-0B 16 16 125 5 U2N M4x5-RU T9IP R A64
PSU2NR 2020K-0B 20 20 150 10 U2N M4x5-RU T9ip R A64

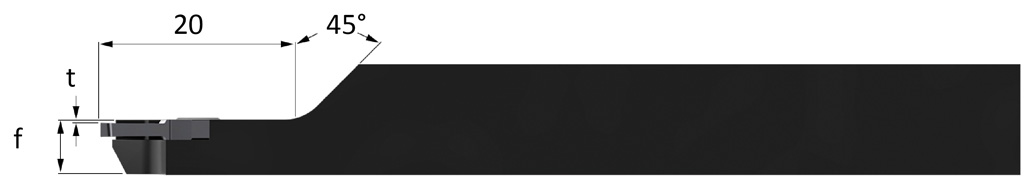

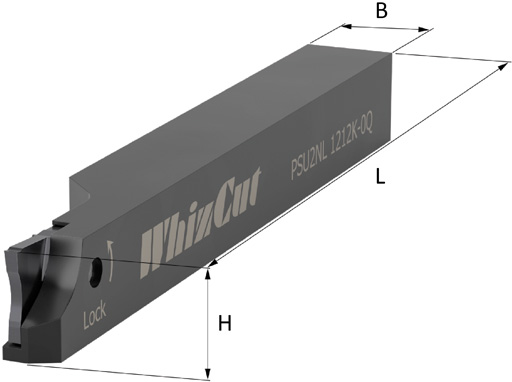

Style Q| Left hand - shifted insert

TOOLHOLDER H B L f INSERT SCREW KEY STOCK PRICE
PSU2NL 88K-0Q 8 8 125 5 U2N M4x5-RU T9IP L A63
PSU2NL 1010K-0Q 10 10 125 5 U2N M4x5-RU T9ip L A63
PSU2NL 1212K-0Q 12 12 125 6 U2N M4x5-RU T9IP L A63
PSU2NL 0500K-0Q 1/2'' 1/2'' 125 1/4" U2N M4x5-RU T9IP L A63
PSU2NL 1616K-0Q 16 16 125 8 U2N M4x5-RU T9ip L A64

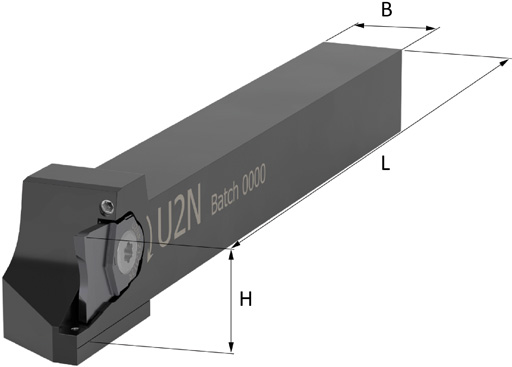

Style C| Right and left hand - coolant through

TOOLHOLDER H B L INSERT PLUG SCREW KEY STOCK PRICE
PSU2NR/L 88H-0C * 8 8 100 U2N M5x0,8 M4x5-RU T9IP a A82
PSU2NR/L 1010H-0C 10 10 100 U2N M8x1 M4x5-RU T9ip a A82
PSU2NR/L 1212H-0C 12 12 100 U2N 1/8 NPT M4x5-RU T9IP a A82
PSU2NR/L 0500H-0C 1/2'' 1/2'' 100 U2N 1/8 NPT M4x5-RU T9IP a A82
PSU2NR/L 1616K-0C 16 16 125 U2N 1/8 NPT M4x5-RU T9ip a A83

*Only 1 coolant exit from above.

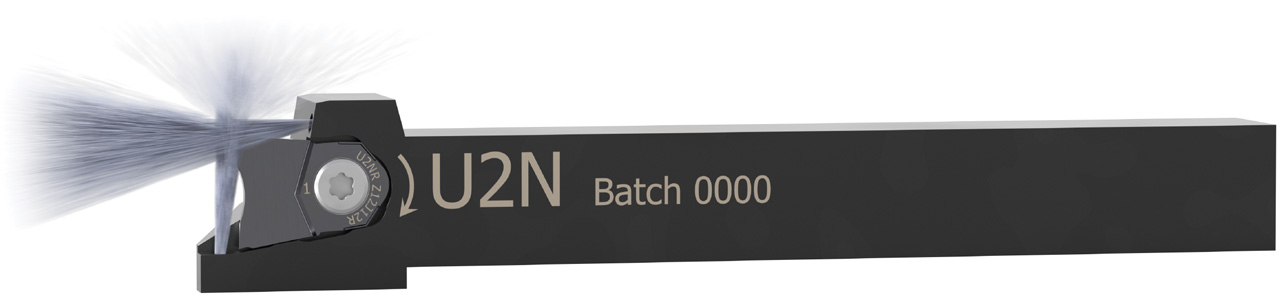

Right hand holders has coolant inlet on opposite side of the insert.
Left hand holders has coolant inlet on insert side.
