WhizHip High Pressure Coolant System





WhizHip is a distribution system for high pressure coolant, capable of handling pressures up to 300 bar, and at the same time flexible for setup and tool changes. WhizHip performs great, leading to shorter machining times, less machine stops and a more consistent process.

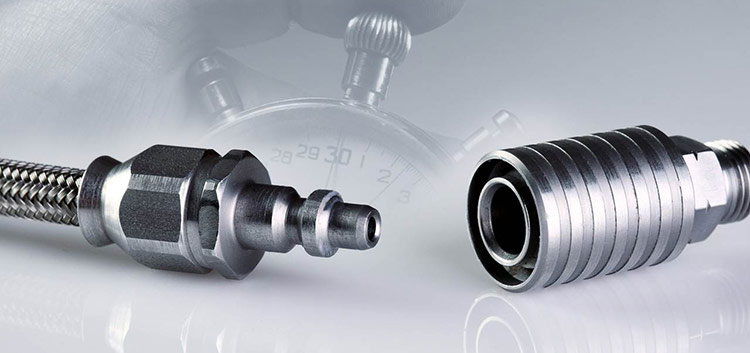

  Miniplug

  • Flexible: WhizHip is designed with flexible, hard wearing stainless steel braided hoses - bendable with quick change couplings and adjustable nozzles.
  • Heat resistant: the hoses are designed to withstand heat from hot chips shooting from the material.
  • Time saving: connect the hoses to the quick change coupling without using any other tools.
  • Exact: the high pressure coolant is led through the toolholder and exits with precisely directed jets.
  • Great chip control: high pressure controls and breaks the chip thanks to its concentration at the cutting edge.
  • Ready: WhizHip and WhizIn toolholders are all prepared for internal high pressure coolant

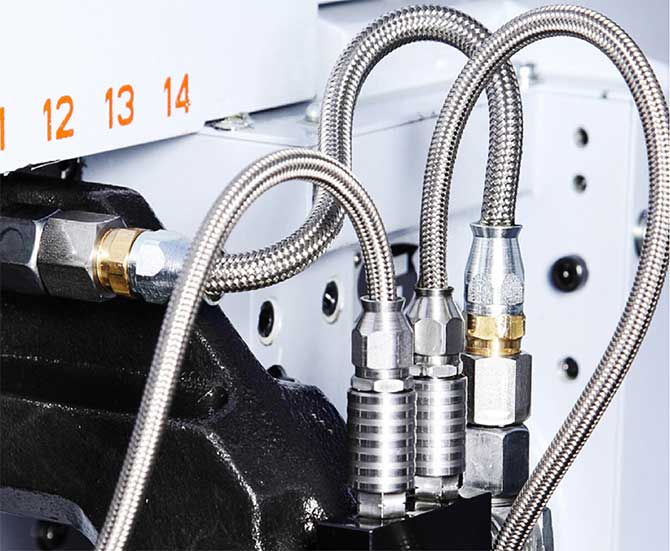

High Pressure Coolant Connector System

Swiss type automatic lathes running high pressure coolant systems with coolant through tool holder are getting more common. One of the challenges has been to use a distribution system which can withhold the high pressure wanted and at the same time also be flexible for setup changes or changing tool-holders.

The WhizHip distribution system is exactly this. It is developed so the user has a quick change connector and a flexible metal braided hosing. The metal braided hosing withstands the heat from hot chips shooting at the material and the system is developed to be used for up to 300 Bar (4351 PSI).

This new system can also be perfectly combined with the WhizHip and WhizIn Toolholders from WhizCut all prepared for internal high pressure coolant. With these toolholders the perfect angle for optimal coolant is given the coolant shoots directly between the forming chip and the cutting edge.

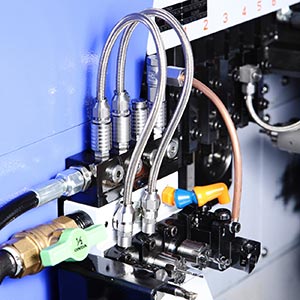

MiniPlug Star


The WhizHip distribution system includes 3-, 5- or 8 way distribution blocks which can be easily mounted in the machine. It also incorporates flexible copper nozzles which can be quickly adapted to the right position as it will not twist in the coupling.

We know all machines and applications are different so contact your local WhizCut representative to get the setup that suits your machine and application the best.







WhizHip High Pressure Coolant Connections

Manifolds
Manifolds

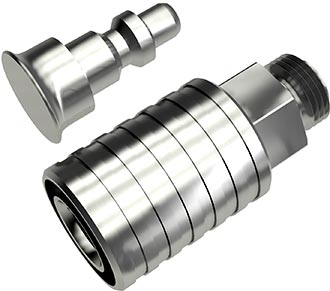

Coupling
Couplings

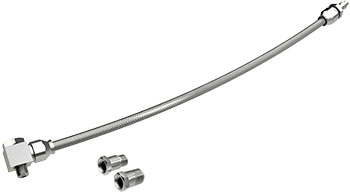

High pressure hose set with plug
Hose Sets

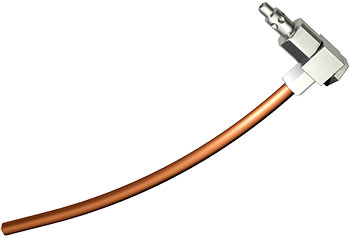

Copper Nozzle
Nozzles
Coupling+Adaptor+Plug

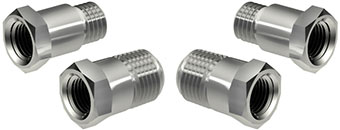

Plugs & Thread Adapters
Inlets & Extras
ManifoldCoupling
High pressure hose set with plug
Combination Sets
